Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Configuration | Open Frame |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | Panel Mount |
| Number of Outputs | 4 Output |
| Operation | Switching |
| Output Current | 3A@5V, 2A@12V, 0.5A@-12V, 0.5A@-5V |
| Output Power | 60 W |
| Output Voltage | 5 VDC, 12 VDC, -5 VDC, -12 VDC |
| Primary Type | AC-DC |
| Product Header | PSA45 Series AC-DC Power Supply |
| Series | |
| Special Features | ISA 9001 Quality System |
| Type | Embedded |
| Voltage, Input Range | 90-264 VAC |
Overview

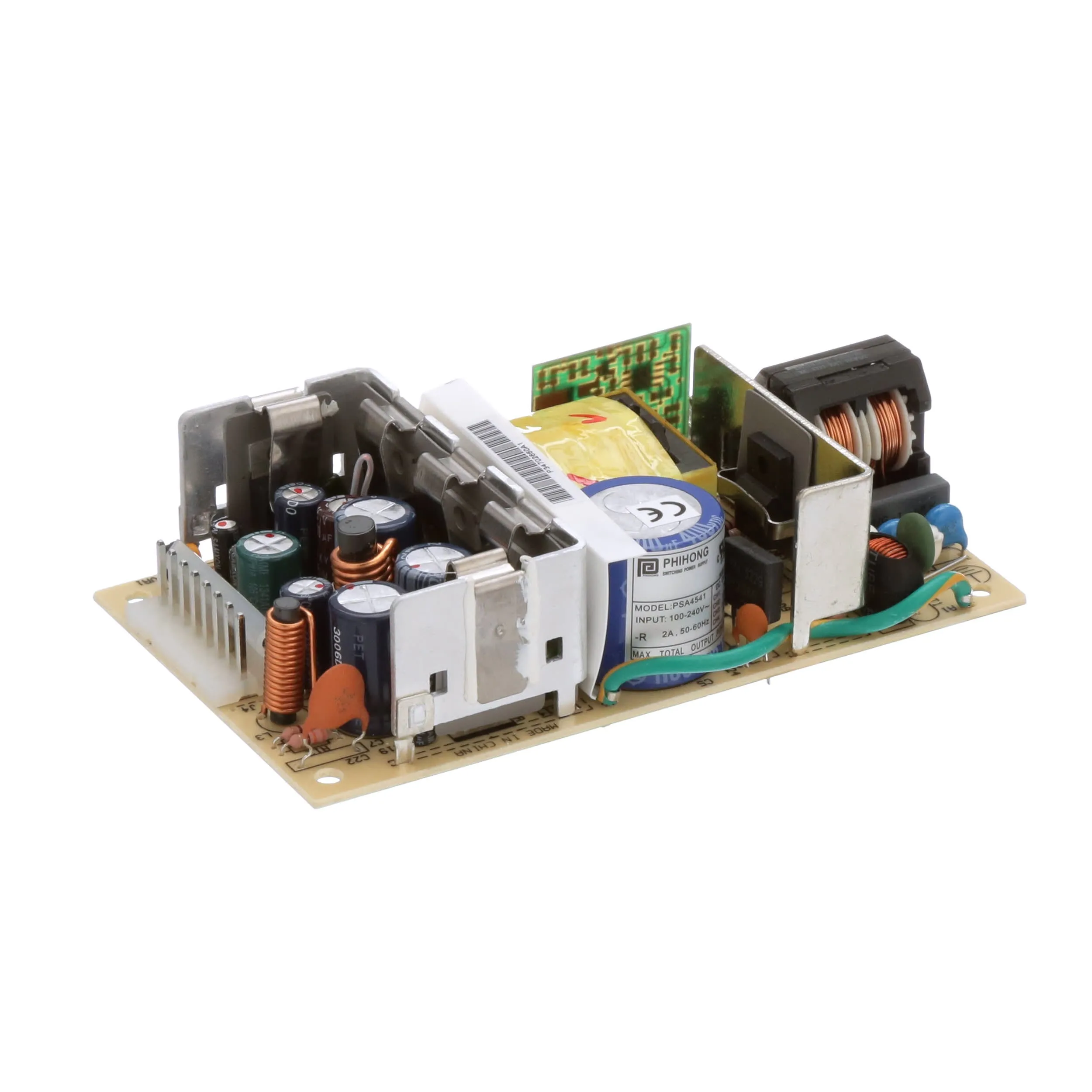

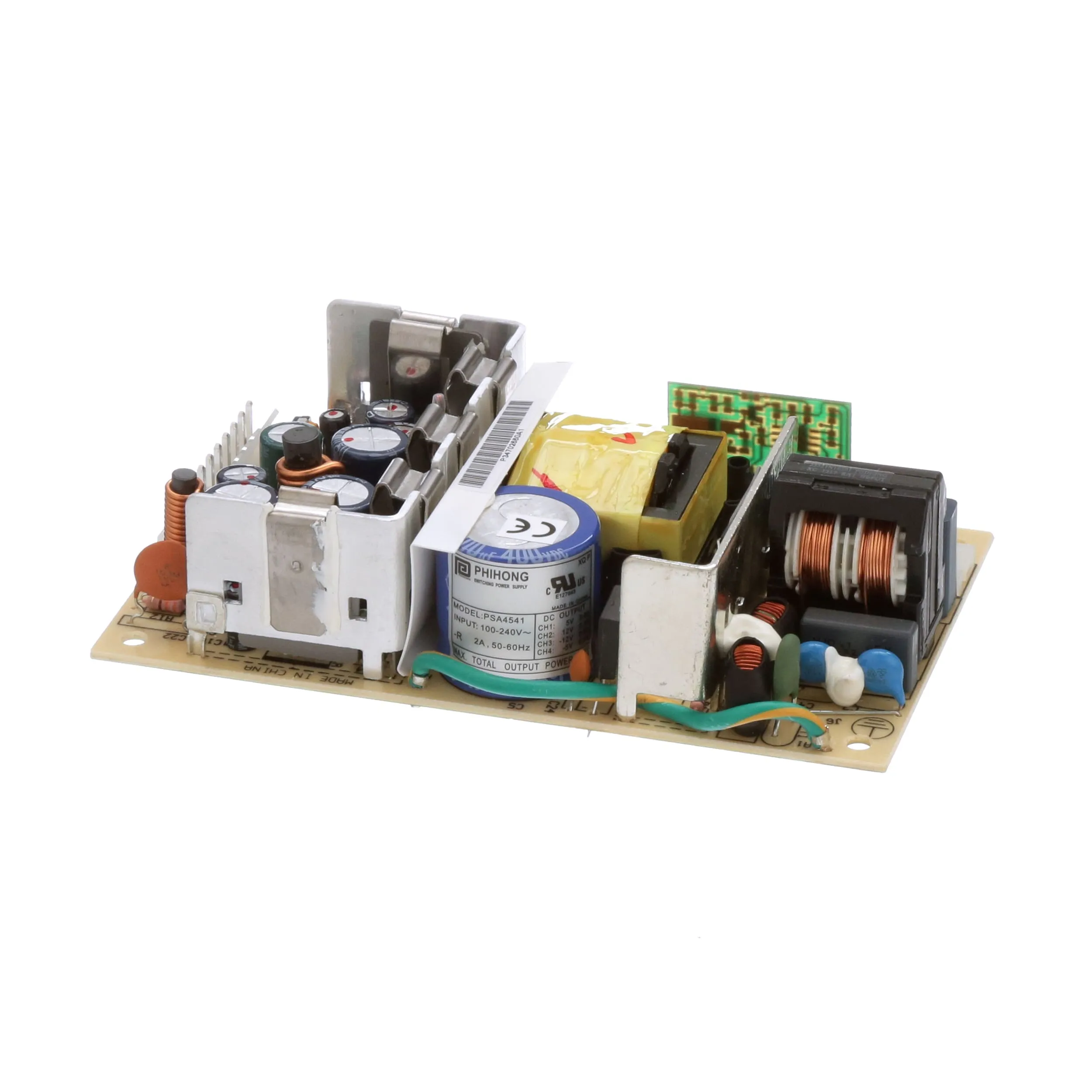

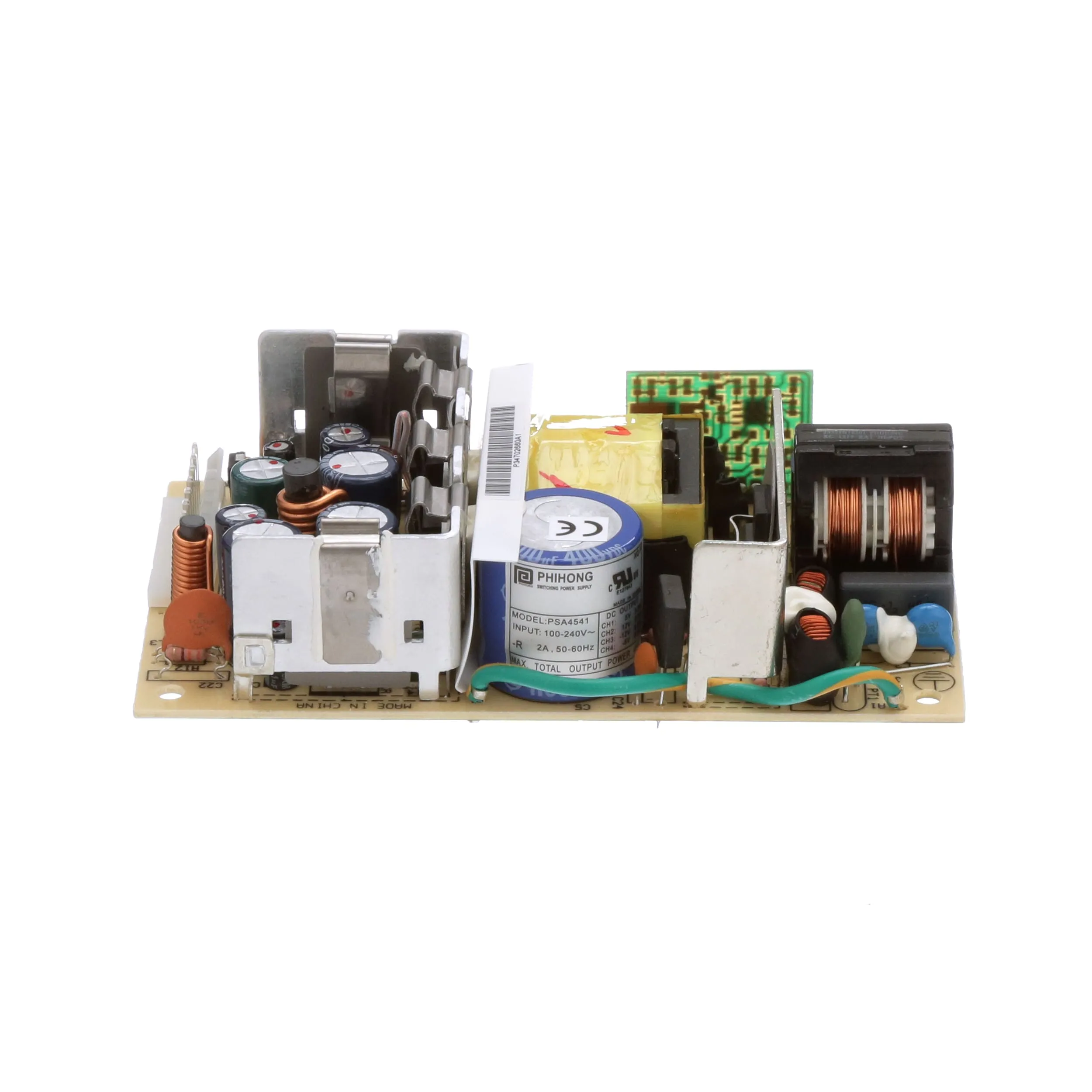

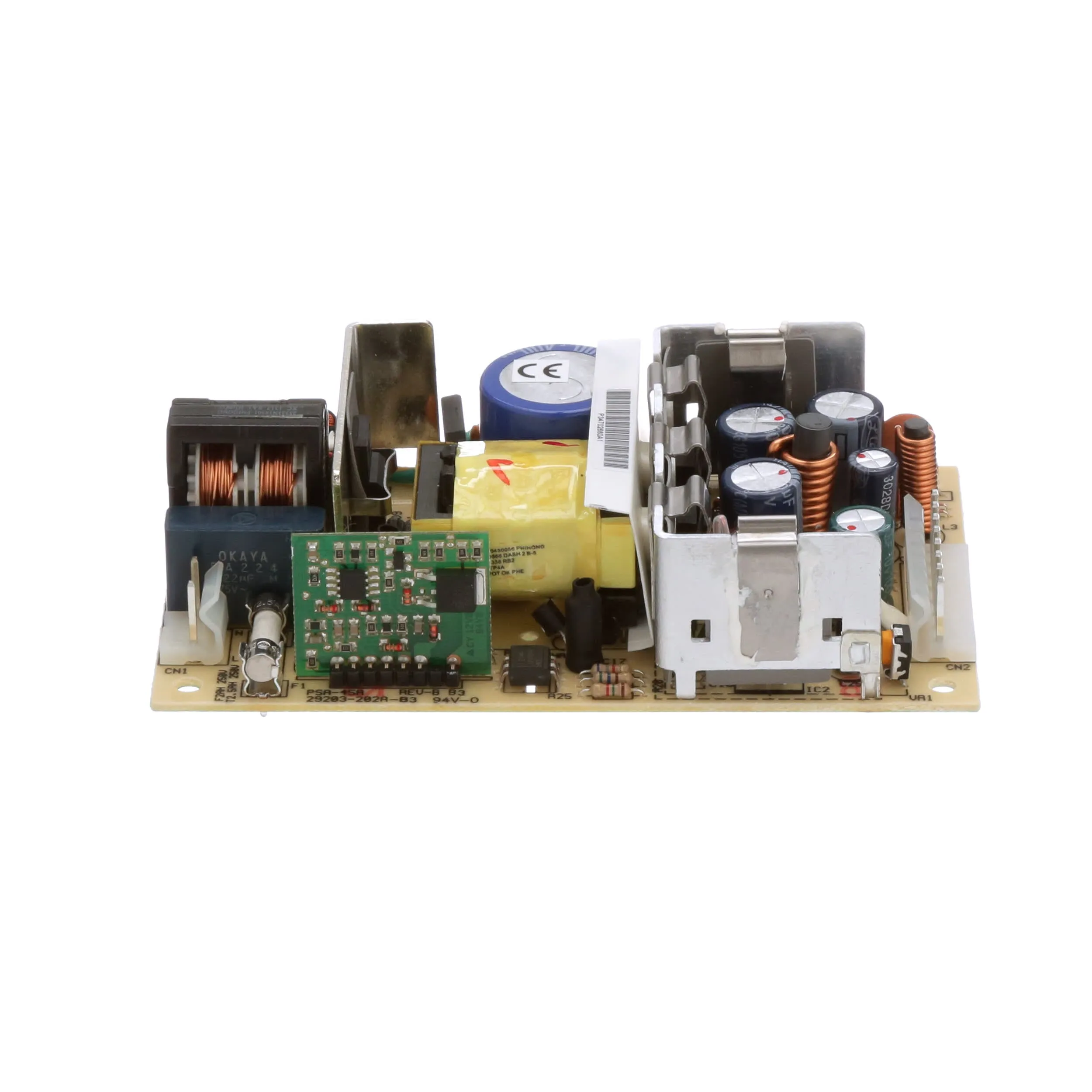

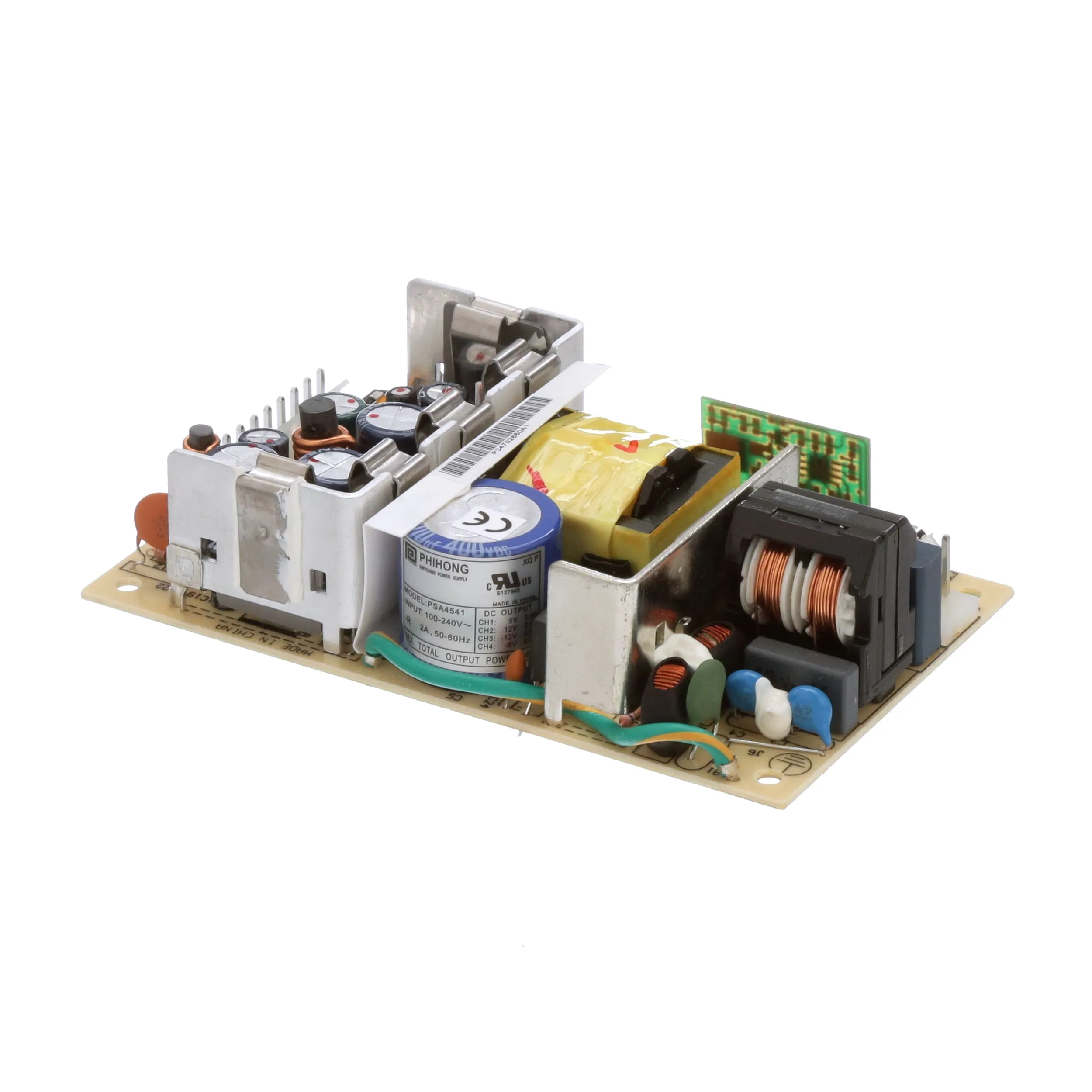

60W Open Chassis Power Supply,One to Four Outputs PSA45 Series
PSA45 series of 60W switch mode embedded AC-DC power supplies, with compact design and universal AC voltage input range. These 60W industrial, open frame AC-DC power supplies have zero minimum loads and extended design life. The PSA45 power supplies feature over current and over voltage protection. Typical applications for these 60W switch mode AC-DC power supplies include networking, mini-microcomputers, peripherals and terminals.
