Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Approvals | UL508/UL60950 ; EN60950-1 ; IEC60950-1 |
| Configuration | Enclosed |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 10 A |
| Output Power | 240 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Series | |
| Special Features | 3 Year Warranty |
| Type | Industrial |
Overview

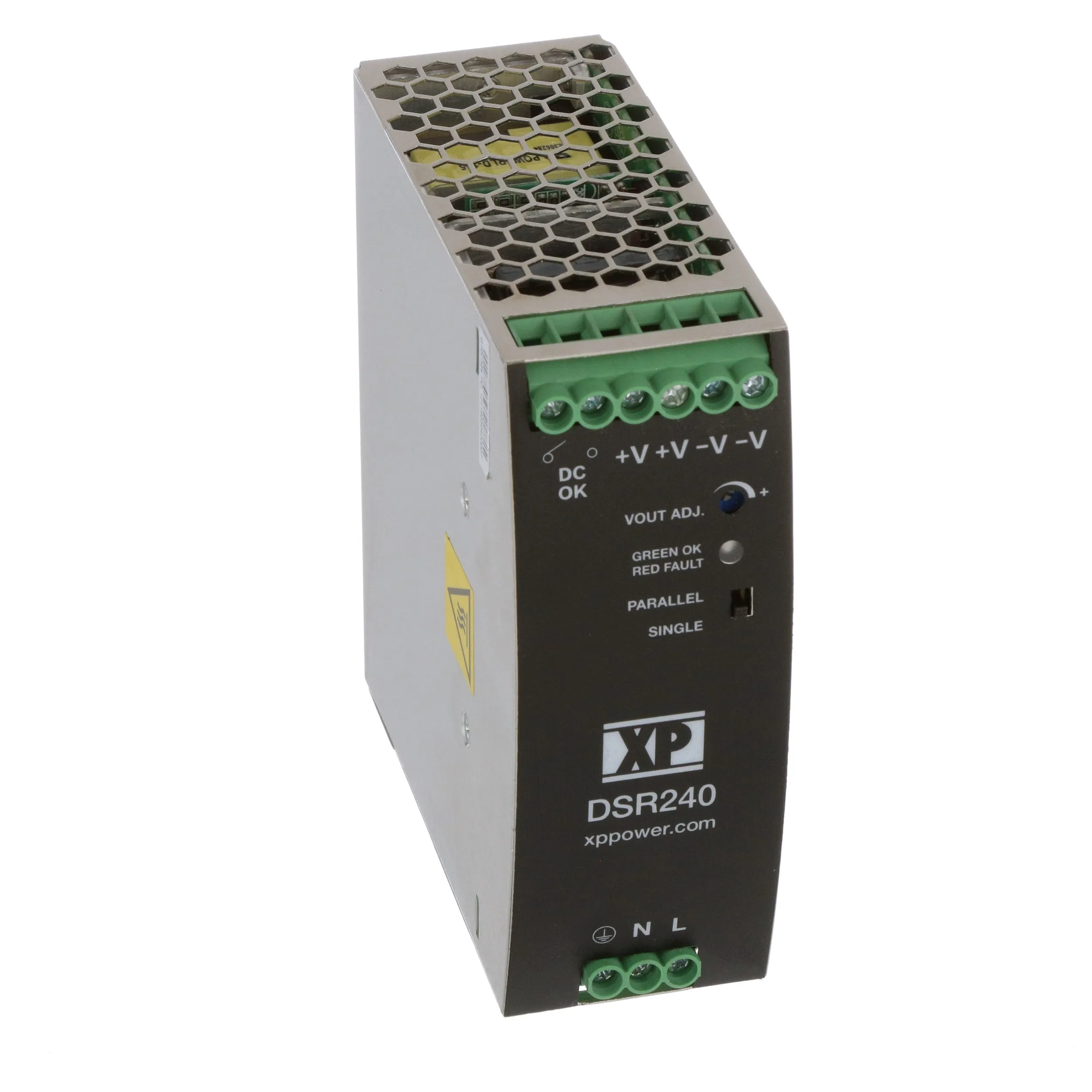

XP Power DSR Series - Ultra-Slim DIN Rail Power Supplies:
With an ultra-slim design, high efficiency, peak load capability, and an extended operating temperature range, the new DSR Series power supplies from XP Power are ideal for DIN rail mounted AC-DC applications that have space constraints on the rail. These fully featured power supplies accept a universal AC input, have global safety approvals, and meet Class B EMI standards.
Features:
